Elco Bi-Flex 300 Series SS Fasteners: 1/4-20 x 4" Flat Head Undercut, #3 Point (500 Qty.)

$792.87
Customer Reviews
Title

:Unavailable

: EBN640-C

: Fastener

: Bridge Fasteners

: Shop ELCO Bi-Flex Stainless Steel Screws

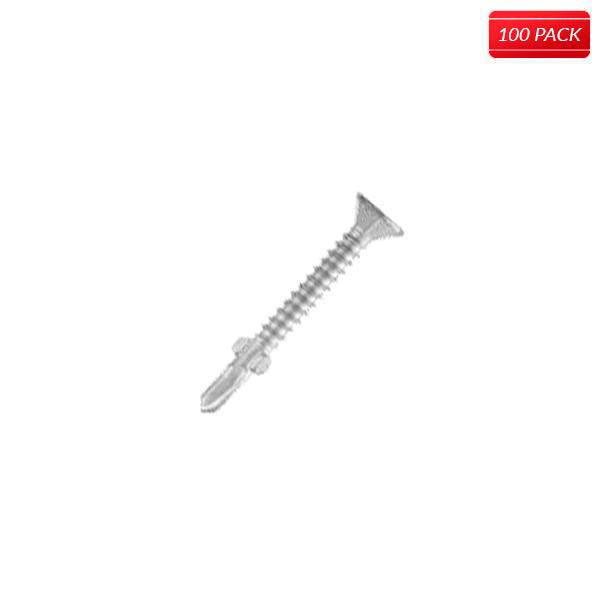

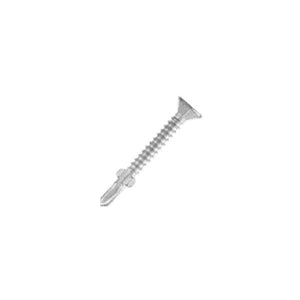

Elco Bi-Flex 300 Series SS Fasteners: 1/4-20 x 4" Flat Head Undercut, #3 Point (500 Qty.)



Elco Bi-Flex self drilling screws with a 300 series stainless steel head have threads fused to hardened steel lead threads and self-drilling point. The Stalgard GB coating provides a galvanic barrier. #2 self-drilling point can drill thicknesses up to .110". #3 self-drilling point can drill thicknesses up to .312". #5 self-drilling point can drill thicknesses up to .500". #10 & #12 screws use a 5/16" hex drive, #14 screws use a 3/8 hex drive.

Length 1/4-20 x 4
Head Style  Phillips
Drive System #3 Phillips
Point Style #3
Max. Load-Bearing Length 3.500 in.
Head Type Flat Head Undercut
Screw Type Bi-Flex 300 Series Stainless Steel Bi-Metal Self-Drilling Screws
Finish Stalgard Galvanic Barrier Coating
Material Hardened Steel Tapping Threads and Point Fused onto an 18-8 Stainless Steel Shank and Head
Box Quantity 500
USA/Import Made in USA



Note: The load-bearing length is the length of 300 series stainless under the hex head or including the flat head. Hardened steel length (lead threads and point) should be through the connection and not in the load bearing section of the connection.

Features and Benefits:
The load-bearing length is the length of 300 series stainless under the hex head or including the flat head. Hardened steel length (lead threads and point) should be through the connection and not in the load bearing section of the connection.High strength, ductility and reliability; Virtually immune to delayed embrittlement failures; Greater galvanic compatibility in dissimilar metal applications involving aluminum; High in-place value over the life of application DOWNLOADS Brochure for Bi-Flex™ 300 Series Stainless Steel Bi-Metal Self-Drilling Screws (PDF, 15245KB)
