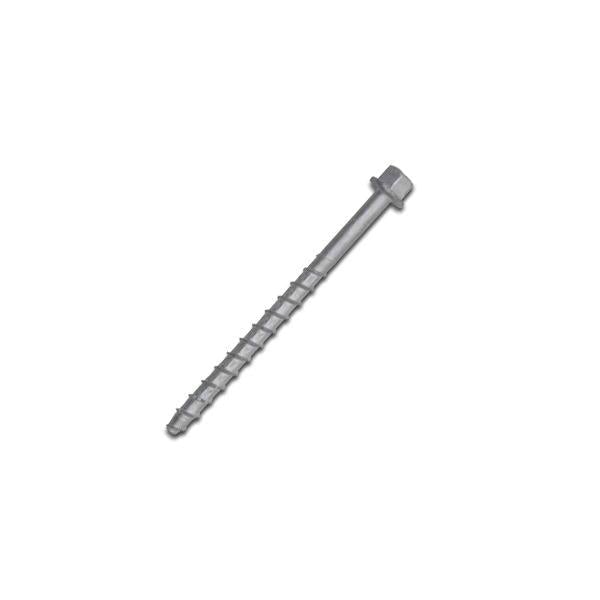

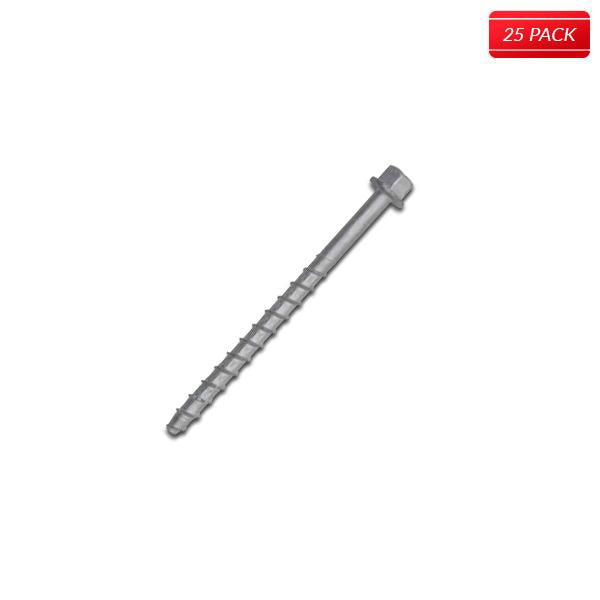

Elco Con-Flex® LDC Screw Anchors 1/2 x 5 HWH w/ locking serration (25 Qty.)
:Unavailable
: EMR370-025
: Fastener
: ELCO
: Conflex Large Diameter Concrete Screws, ELCO Construction Fasteners & Screws
Share
:Elco Con-Flex® LDC Screw Anchors 1/2 x 5 HWH w/ locking serration (25 Qty.)
Con-Flex® masonry screws are engineered to provide high pull-out and shear values with virtual immunity to brittle failures. Enhanced ductility allows use in demanding exterior applications.
Main Benefits:
- Enhanced Ductility
- Alloy Steel
- Hex Washer Head with Locking Serrations
- Silver Stalgard® Coating
Length | 5 in. |
Thread Length | 3-1/2 in. |
Drive System | 3/4 in. Hex |
Drill Bit Size | 7/16 in. |
Head Size | 1/2 in. Diameter HWH |
Screw Type | ConFlex Large DIameter |
USA/Import | Made in USA |
Material | Alloy Steel |
Head Style | Hex Washer Head w/ Locking Serrations |
Thread Style | Double-Leaded |
Finish | Silver Stalgard® Coating |
Tensile Yield | 92000 KSI min. |
Tensile Ultimate | 120000 KSI min. |
Inspection | The head marking consists of an Elco logo and the fastener length in inches |
Diameter | 1/2 in. |
Box Quantity | 25 |
Weight | 7 Lbs |
Features and Benefits:
- Flex Technology heat treat allows virtual immunity to brittle failures, allowing use in exterior applications
- Locking serrations under the head provide back out resistance
- Hardened tip ensures efficient tapping into concrete
- Head markings allow easy inspection
- Install with standard ANSI bits
