To maintain panel integrity in high-stress and high- vibration environments
Vibration, either from inside or outside a building, can make ordinary fasteners loosen and back out. Fab-Lok fasteners combine a slotted aluminum sleeve and fastener to provide high resistance to vibration loosening. Excellent for use with insulated panels.

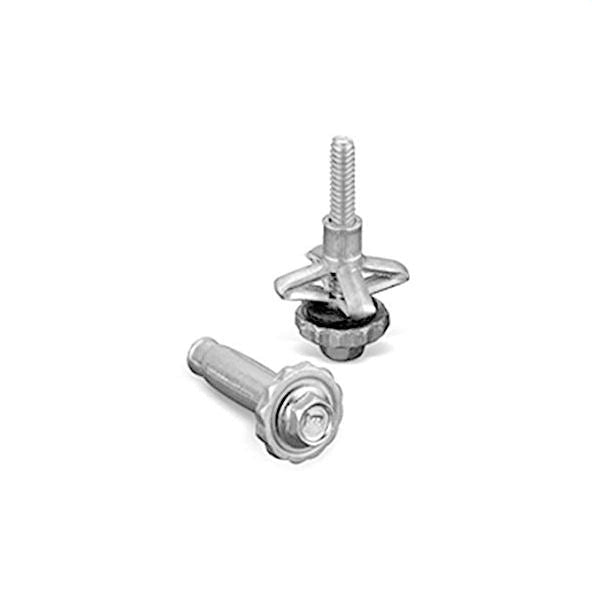

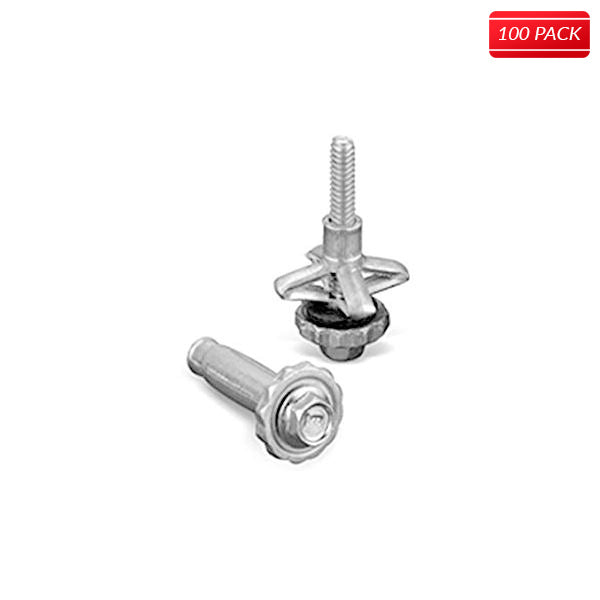

1/4-20 hex washer head machine screw assembled to a slotted aluminum sleeve and EPDM sealing washer. Penetrating length: 1.807". Grip range: 0.5" - 0.75". Slotted sleeve collapses during installation, drawing the application materials together and providing a large bearing area at the back of the joint. These clamping tines remain in place, even in the original screw is removed. They are ideal for non-structural joints in areas subject to high vibration, wind, expansion/contraction, etc. Install with Fab-Lok holding sleeve (HFZJ900). MADE IN U.S.A.
|Description||0.500" - 0.750" Grip Range|
|Penetrating Length||1.807 in|
|Grip Range||0.500 to 0.750 in|
|Head Size||H3 (300 Series) 18-8 Stainless Steel Screw|
|Screw Type||Fab-Lok Fasteners|
|USA/Import||Made in USA|
|Material||300 Series Stainless Steel Screw with Aluminum Sleeve|
|Box / Case||100 / 1000|
|Weight||2.7 / 27 lbs|
Features and Benefits
- Hex washer head machine screw assembled to a slotted aluminum sleeve and EPDM sealing washer
- After tightening, clamping tines remain in place even if screw is removed
- Greater joint integrity with clamping force
