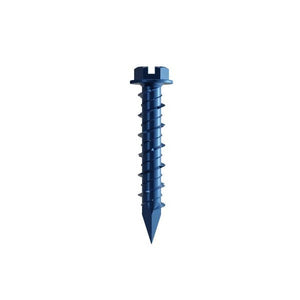

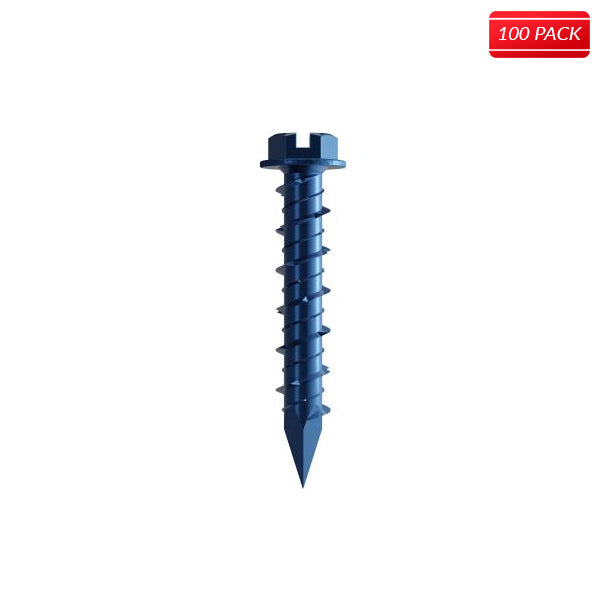

Titen Concrete and Masonry 1/4 x 1 3/4 Hex Head Screw 100 QTY.

$13.20
Customer Reviews
Title

:In stock

: TTN25134H

:

: Simpson Strong-Tie

: Titen Concrete Screws

Titen screws are hardened screws for attaching all types of components to concrete and masonry. These fasteners are commonly used in applications such as attaching electrical boxes, light fixtures or window frames into concrete or masonry base materials.

Key Features:

  • Available in 3/16" and 1/4" diameter sizes
  • Available in hex and Phillips flat-head designs in two colors
  • Drill bit included with each box

Material:

  • Carbon Steel

Finish:

  • Zinc plated with a baked-on ceramic coating

Installation:

  1. Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/2" to allow the thread tapping dust to settle and blow it clean using compressed air. Overhead installations need not be blown clean. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling and tapping.
  2. Position fixture, insert screw and tighten using drill and installation tool fitted with a hex socket or phillips bit.

Preservative-treated wood applications: suitable for use in non-ammonia formulations of CCA, ACQ-C, ACQ-D, CA-B, BX/DOT and zinc borate. Use in dry, interior environments only.

Use caution not to damage ceramic barrier coating during installation. Recommendations are based on testing and experience at time of publication and may change. Simpson Strong-Tie cannot provide estimates on service life of screws.

Caution:

  • Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads. Overtightening and bending moments can initiate cracks detrimental to the hardened screw's performance. Use the Simpson Strong-Tie installation tool kit. It is designed to reduce the potential for overtightening the screw.
  • Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.

Technical Information:

Titen® Design Information

Codes and Standards:

State of Florida FL2355

Related Links:

Anchoring Systems Technical and Installation Notes
