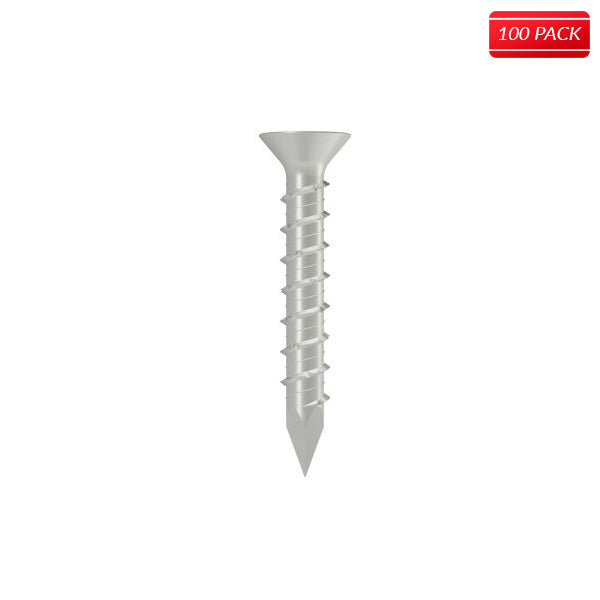

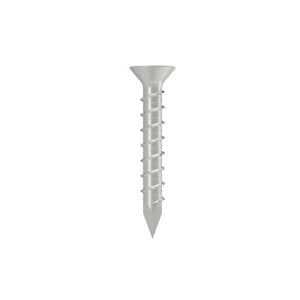

Titen Stainless-Steel Concrete and Masonry 1/4 x 2 1/4 Phillips Flat Head Screw 100 QTY.

Titen Stainless-Steel Concrete and Masonry 1/4 x 2 1/4 Phillips Flat Head Screw 100 QTY.

$66.00
Customer Reviews
Title

:In stock

: TTN25214PFSS

:

: Simpson Strong-Tie

: TIten Stainless Steel Screws

Stainless-steel Titen screws are ideal for attaching various types of components to concrete and masonry, such as fastening electrical boxes or light fixtures. They offer the versatility of our standard Titen screws with enhanced corrosion protection. Available in hex and Phillips flat head.



Key Features:

  • Suitable for concrete, brick, grout-filled CMU and hollow-block applications
  • Suitable for some preservative-treated wood applications
  • Acceptable for exterior use
  • Titen drill bits included in each box
  • Available in lengths from 1 1/4"–4"

Material:

  • Type 410 stainless steel

Finish:

  • Type 410 stainless steelZinc plated with a protective overcoat

Installation:

  1. Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/2" to allow the thread tapping dust to settle and blow it clean using compressed air. Overhead installations need not be blown clean. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling and tapping.
  2. Position fixture, insert screw and tighten using drill and Titen screw installation tool fitted with a hex socket or Phillips bit.

Preservative-treated wood applications: suitable for use in non-ammonia formulations of CCA, ACQ-C, ACQ-D, CA-B, SBX/DOT and zinc borate. Acceptable for use in exterior environments. Use caution not to damage coating during installation. The 410 stainless-steel Titen with top coat provides “medium” corrosion protection. Recommendations are based on testing and experience at time of publication and may change. Simpson Strong-Tie cannot provide estimates on service life of screws.

Design Information and Load Tables

Titen Design Information

Codes and Standards

State of Florida FL2355

Related Links:

Anchoring Systems Technical and Installation Notes

Catalog Pages:

C-A-2018 (Anchoring, Fastening and Restoration Systems), pages 172–173
