WEDGE-ALL 3/4 x 5-1/2 (10 Per Box)

$21.59
Customer Reviews
Title

:Unavailable

: WA75512

: Wedge Anchor

: Simpson Strong-Tie

:

This product has been replaced by the STB2

Item Description

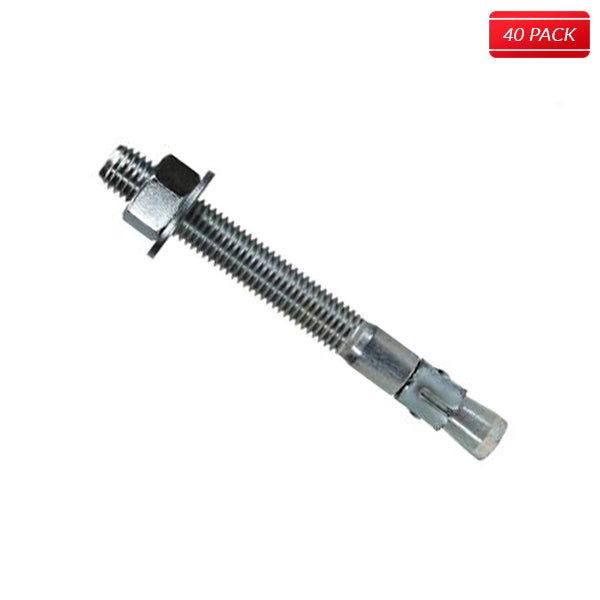

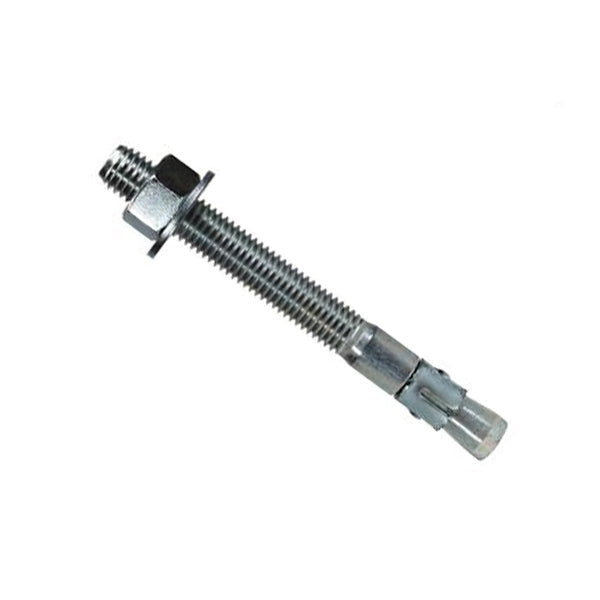

Simpson Strong-Tie WA75512 Wedge Anchor 3/4 x 5-1/2" 40ct

A non-bottom-bearing, wedge-style expansion anchor for use in solid concrete or grout-filled masonry. The Wedge-All wedge anchor is available in carbon steel with zinc or mechanically galvanized coating, as well as Types 303/304 and Type 316 stainless steel. Threaded studs are set by tightening the nut to the specified torque. The Wedge-All is code listed for grout-filled masonry applications.

Key Features:
-Code-listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
-One-piece, wrap-around clip ensures uniform holding capacity
-Threaded end is chamfered for ease of starting nut
-Available in a wide range of diameters and lengths

Material: ÕÌ_Carbon Steel

Finish: ÕÌ_Zinc Plated Carbon Steel ÕÌ_

Specifications:
Anchor Diameter: 3/4"
Anchor Length: 5-1/2"
Anchor Material: Zinc
Quantity: 40
Anchor Head Type: Hex
UPC: 044315987311
Drill Bit Diameter: 3/4"
Wrench Size (in.): 1-1/8
Thread Length (in.): 3-5/8
Minimum Fixture Hole Diameter (in.): 7/8
