This product has been replaced by the STB2

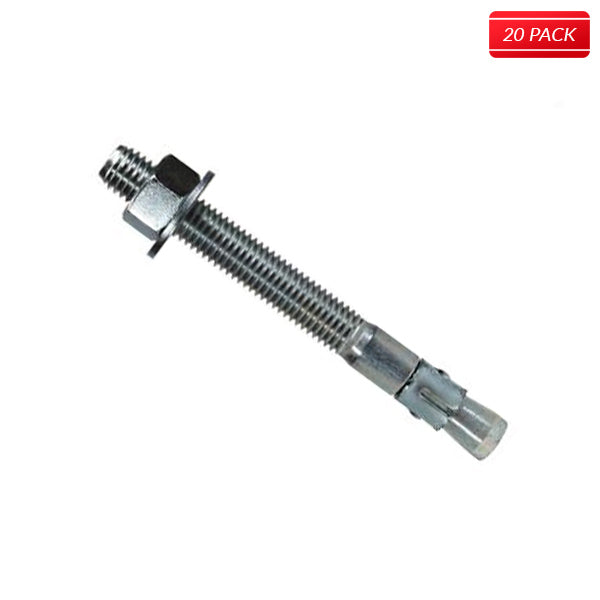

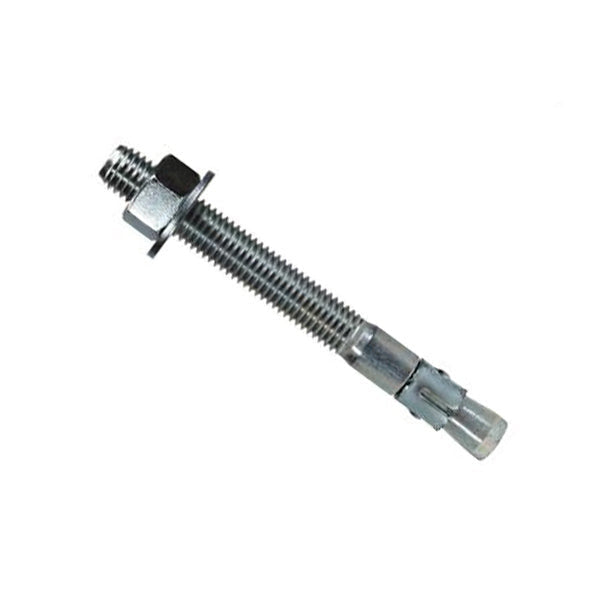

A non-bottom-bearing, wedge-style expansion anchor for use in solid concrete or grout-filled masonry. The Wedge-All wedge anchor is available in carbon steel with zinc or mechanically galvanized coating, as well as Types 303/304 and Type 316 stainless steel. Threaded studs are set by tightening the nut to the specified torque. The Wedge-All is code listed for grout-filled masonry applications.
-Code-listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
-One-piece, wrap-around clip ensures uniform holding capacity
-Threaded end is chamfered for ease of starting nut
-Available in a wide range of diameters and lengths
Material: ÕÌ_Carbon Steel
Finish: ÕÌ_Zinc Plated Carbon Steel ÕÌ_
|Anchor Head Type:||Hex|
|Drill Bit Diameter:||5/8"|
|Wrench Size (in.):||15/16|
|Thread Length (in.):||6|
|Minimum Fixture Hole Diameter (in.):||11/16|
